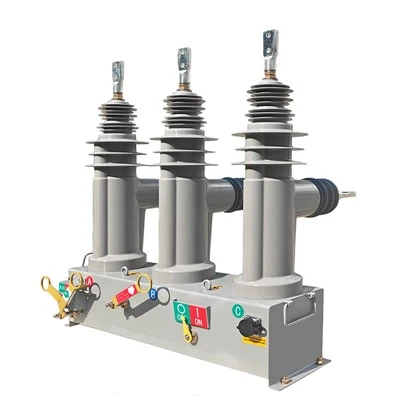

External Powered Vacuum Circuit Breaker

Our External Powered Vacuum Circuit Breaker is an external power-taking vacuum circuit breaker specially designed for outdoor pole-mounted distribution scenarios, which fundamentally solves the industry pain point of lacking auxiliary operating power in remote lines. This External Powered Vacuum Circuit Breaker adopts an external inductive power-taking device, which can induce and obtain working power directly from the high-voltage line itself, without additional laying of control cables and supporting power facilities. It greatly reduces project construction costs and construction difficulty, and is especially suitable for areas with imperfect power supply infrastructure such as mountainous areas and field regions. As a mature product of the external power-taking solution, the External Powered Vacuum Circuit Breaker integrates a reliable power management and energy storage module, which can stably output control power when the line is energized. It also has power-off energy storage function, and can complete opening and closing operations even during temporary line power outages, ensuring the continuity and reliability of distribution protection functions.

In terms of core performance and environmental adaptability, this external powered vacuum circuit breaker adopts vacuum arc extinguishing technology. The interrupter has high vacuum degree and strong arc extinguishing capability, with no open flame and no explosion risk during breaking, delivering excellent safety performance. Equipped with a permanent magnet operating mechanism, the equipment features fast action speed, high mechanical reliability and short opening/closing time, which can quickly isolate faulty lines and prevent fault expansion. The enclosure is integrally molded with high-strength epoxy resin, with strong weather resistance, corrosion protection and UV resistance, and can operate normally in a wide temperature range. Combined with years of application experience in outdoor distribution equipment, we have carried out multiple optimizations and upgrades on the power-taking efficiency, operation stability and anti-interference ability of this product, ensuring stable power taking and reliable action under different load conditions and meteorological environments, and providing overseas purchasers and end customers with a cost-effective passive distribution protection solution.

Application Fields



• Distribution lines without auxiliary power in remote mountainous areas and field regions
• Rural power grid transformation and upgrading projects
• Protection and control of temporary power supply lines
• Sectional protection of long-distance overhead distribution lines
• Power supply systems for field operations such as oil fields and mining areas

We have mature and rich full-cycle OEM & ODM service experience in pole-mounted switches and reclosers, serving global brand owners and distributors all year round. For this product, our professional technical R&D team can conduct a comprehensive manufacturability review according to the technical drawings or prototypes provided by customers, and then carry out customized production in strict accordance with the mutually confirmed technical specifications. Customization is available for power-taking parameters, current ratings, functional configurations and appearance markings. We maintain close communication with customers throughout the process from prototyping, test verification to final mass production, to ensure that finished products fully meet project requirements.

We provide customized export packaging solutions according to customers' different needs, transportation methods and protection requirements, using reinforced wooden crates and shock-absorbing cushioning materials to ensure products are not damaged during long-distance sea and land transportation. For bulk orders, we can comply with FOB trade terms, be responsible for transporting goods to the port and handling customs declaration and export-related fees. We can also negotiate trade terms such as EXW and DDP to meet the logistics needs of different customers, and fully ensure the safe and timely delivery of goods.

Our products have obtained multiple national patents, including utility model patents and design patents, and have passed type tests conducted by authoritative institutions. The factory has been awarded as Henan Provincial "Specialized, Refined, Differential and Innovative" Enterprise and Green Factory, with production management and environmental management complying with national regulatory requirements. All products are designed and manufactured in strict compliance with international electrical standards, which can meet the market access requirements of different countries and regions around the world, providing customers with compliant and reliable product guarantees.
