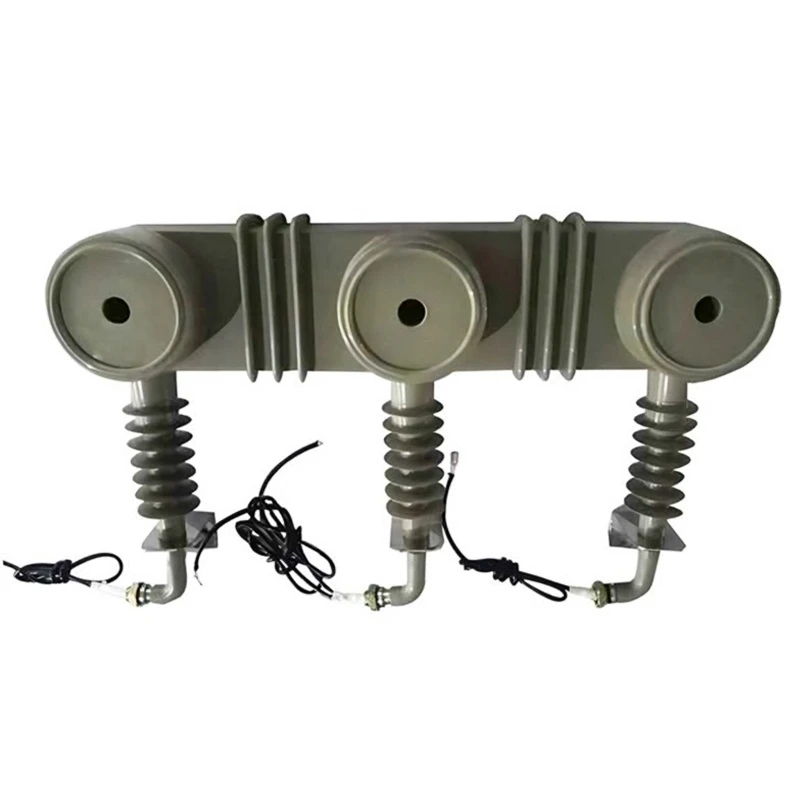

Capacitive Voltage Transducer

The Capacitive Voltage Transducer is a medium and high voltage sensing device designed based on the capacitive voltage divider principle. It is specially developed for voltage measurement, protection and metering scenarios of medium and high voltage distribution systems, and can be used together with our switchgear such as circuit breakers and reclosers to realize accurate collection of line voltage. This product adopts a capacitive voltage divider structure, without iron core design, no magnetic saturation problem, good measurement linearity and wide frequency response range. It can accurately collect steady-state and transient voltage signals, and provide reliable voltage data for protection devices and metering systems. As the core sensing component supporting switchgear, the Capacitive Voltage Transducer has excellent insulation performance, can be directly installed on medium and high voltage live bodies without additional insulation adaptation, and is the core device for voltage sensing in smart distribution grids.

In terms of performance and adaptability, this capacitive voltage transducer adopts high-precision capacitive elements, with good temperature stability and high measurement accuracy, and can maintain stable measurement accuracy in a wide temperature range. The equipment adopts an integrated insulation casting structure, with good sealing performance, waterproof and dustproof, high protection grade, and can operate stably for a long time in harsh outdoor environments. In response to the application scenarios of medium and high voltage switchgear, we have optimized the installation interface and output signal of the product, which can be seamlessly connected with our circuit breaker and recloser products, and also adapt to third-party switchgear and protection devices. At the same time, we can provide customized configurations according to customers' voltage levels, accuracy requirements and output modes to meet the differentiated sensing needs of different projects.

Application Fields



• Voltage monitoring of medium and high voltage distribution lines
• Voltage acquisition supporting circuit breakers and reclosers
• Voltage sensing for distribution network automation
• Electric energy metering systems
• Relay protection devices

We have rich customization experience in sensing equipment, and can provide full-parameter customization services for this capacitive voltage transducer. We can customize parameters such as rated voltage, accuracy grade, output signal type, and installation interface according to customer needs, and also customize overall dimensions and environmental adaptability grades according to special application scenarios. Our professional technical team will follow up the customization process throughout the whole process, and communicate throughout the whole process from scheme design, sample testing to batch production, ensuring that the customized products fully match the technical requirements of the project and meet the voltage collection needs of different scenarios.

We are a provincial intelligent high-voltage sensor engineering technology center, with a number of national patents in the field of power sensing technology. This capacitive voltage transducer has passed type tests and metrological calibration tests conducted by authoritative institutions, and all performance indicators meet national and industry standards. All products are designed and manufactured in strict compliance with relevant technical specifications, which can meet the access requirements of power system metering and protection, and provide customers with compliant, reliable and high-precision voltage sensing equipment guarantees.

We have established a strict quality management system for sensor products, and implement full-process quality control for this product. Core capacitive elements have all undergone strict incoming screening and aging tests to ensure stable and reliable performance. Each process in the production process is set with exclusive quality inspection nodes. Before delivery, finished products must pass full inspections such as accuracy test, withstand voltage test, environmental adaptability test, and insulation test. A 100% full inspection system is implemented, and each product is accompanied by a calibration certificate. We support third-party metrological institutions for calibration and inspection to ensure that each delivered transducer has up-to-standard accuracy and reliable performance.
