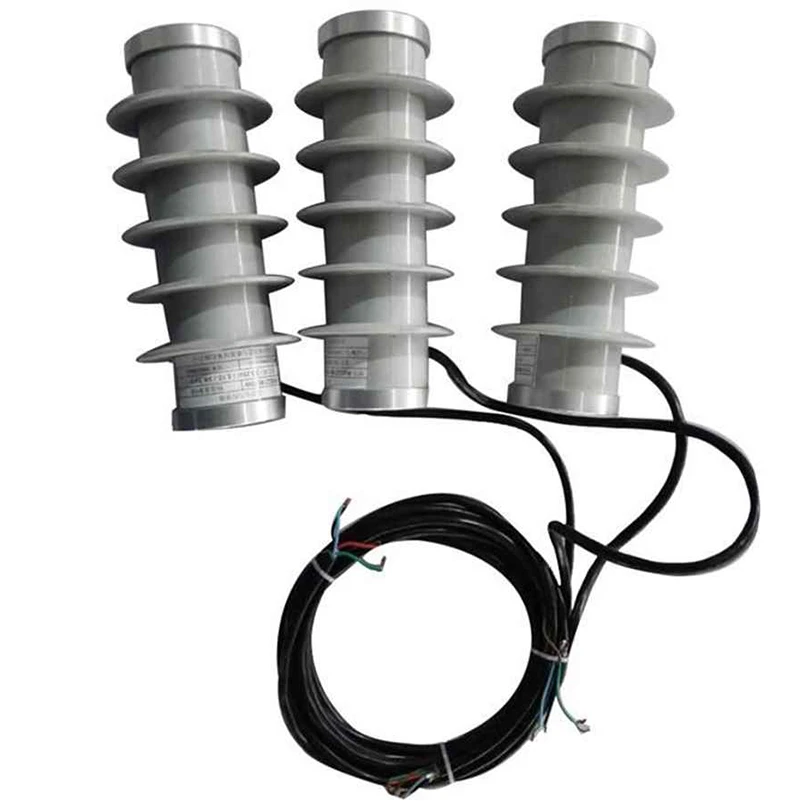

Modular Combination Transducer

The Modular Combination Transducer is a multi-parameter combined sensing device designed with a modular architecture. It can freely combine various sensing modules such as voltage, current, vibration, and temperature according to customer needs, realizing simultaneous monitoring of multiple electrical and mechanical parameters with a single device. This product breaks the functional limitation of traditional single sensors, adopts a unified hardware platform and interface standards, and different functional modules can be freely plugged and combined to flexibly adapt to the monitoring needs of different projects, greatly reducing the number of equipment and installation workload, and lowering system costs. As an integrated multi-parameter sensing device, the Modular Combination Transducer is especially suitable for the integrated sensing needs of smart distribution network terminals and intelligent switchgear, and is the core integrated sensing unit of smart distribution systems.

In terms of technical advantages and scenario adaptability, each functional module of this modular combination transducer adopts high-precision sensing elements, with high measurement accuracy and stable performance. The modules are independent of each other and do not interfere with each other, ensuring the accuracy of simultaneous measurement of multiple parameters. The equipment adopts a unified output interface and communication protocol, which can uniformly upload all monitoring data for system integration. The whole equipment adopts outdoor integrated design, with high protection grade, and can be directly installed on outdoor switchgear without additional protection. Relying on technical accumulation in the field of power sensing, we provide a wealth of optional functional modules, including voltage, current, temperature, vibration, zero sequence, etc. Customers can flexibly choose and combine according to project needs, and also customize the development of special functional modules to meet diversified integrated sensing needs, providing one-stop sensing solutions for intelligent power equipment.

Application Fields



• Integrated sensing of intelligent switchgear
• Multi-parameter monitoring of distribution network automation terminals
• Comprehensive status monitoring of switchgear cabinets
• New energy grid-connected equipment monitoring
• Industrial power system status monitoring

We have strong modular customization capability, and can provide in-depth customization services for this combination transducer. Customers can freely choose and match different functional modules, and also customize the development of new functional modules and communication protocols to meet the monitoring needs of special projects. Our professional technical team will follow up the customization process throughout the whole process, and communicate throughout the whole process from scheme design, module development to system commissioning and batch production, ensuring that the customized products can be seamlessly connected with customers' systems and realize integrated multi-parameter status sensing.

Our factory is a provincial intelligent high-voltage sensor engineering technology center, with a professional sensing technology R&D team and modular product production lines, with complete capabilities from module R&D to system integration. The plant is equipped with professional production and testing equipment, with a monthly production capacity of thousands of sets, which can stably accept various customized integrated sensing project orders. We have provided multi-parameter combined sensing equipment for multiple domestic smart distribution network projects, and have rich experience in modular product R&D and system integration, with mature technology and strong delivery capability.

We have established a strict quality management system for modular products. Each functional module undergoes independent incoming inspection and finished product testing to ensure that the performance of a single module meets the standards. After the whole machine is assembled, unified commissioning tests, environmental adaptability tests and electromagnetic compatibility tests are carried out to ensure stable and reliable cooperative operation of multiple modules. All products are subject to a 100% full inspection system before delivery, accompanied by a complete functional inspection report. We support third-party authoritative inspection, and can cooperate in completing various performance verification work to ensure the complete functions and stable operation of the delivered integrated sensing equipment.
